Usage:

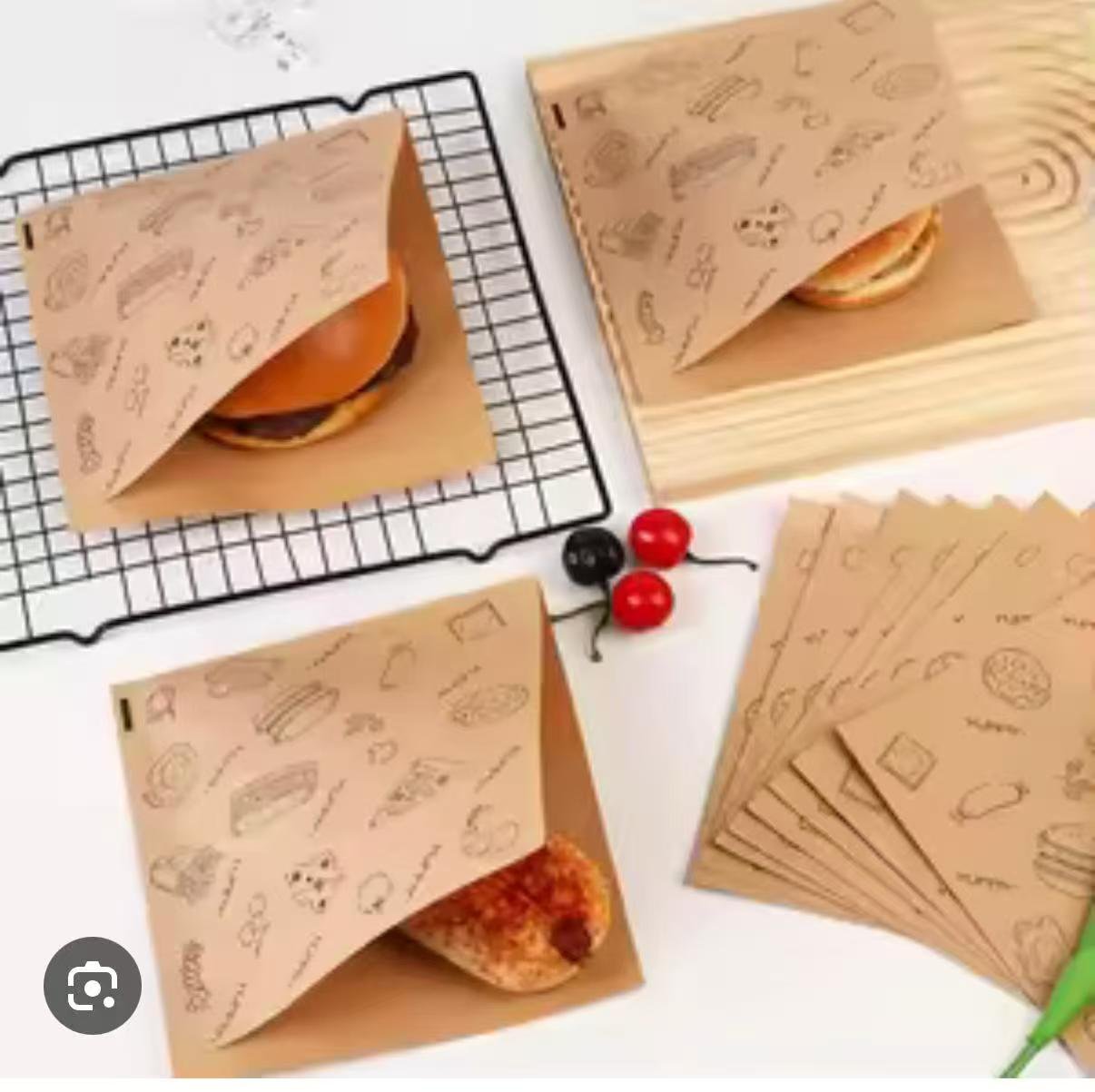

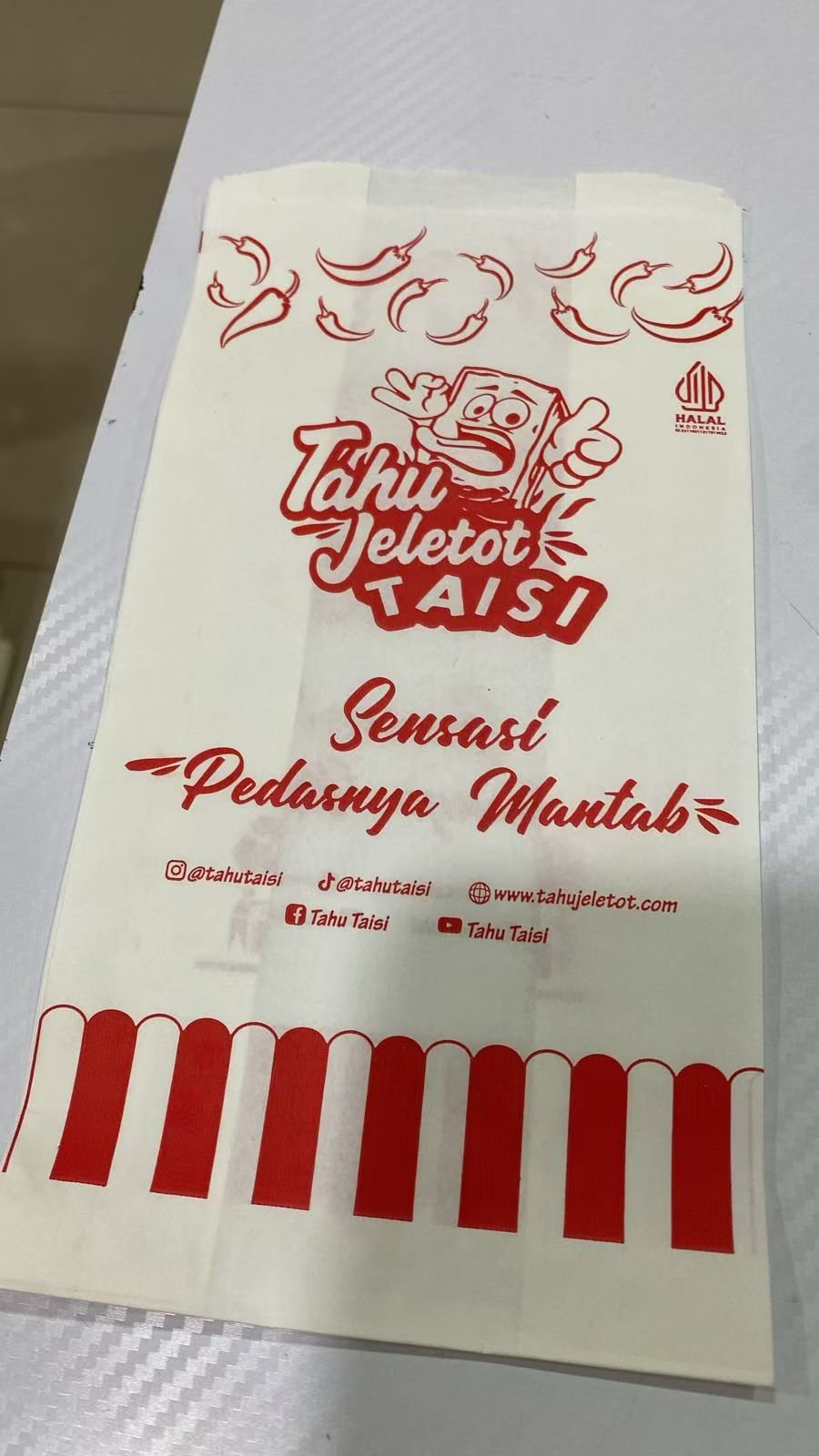

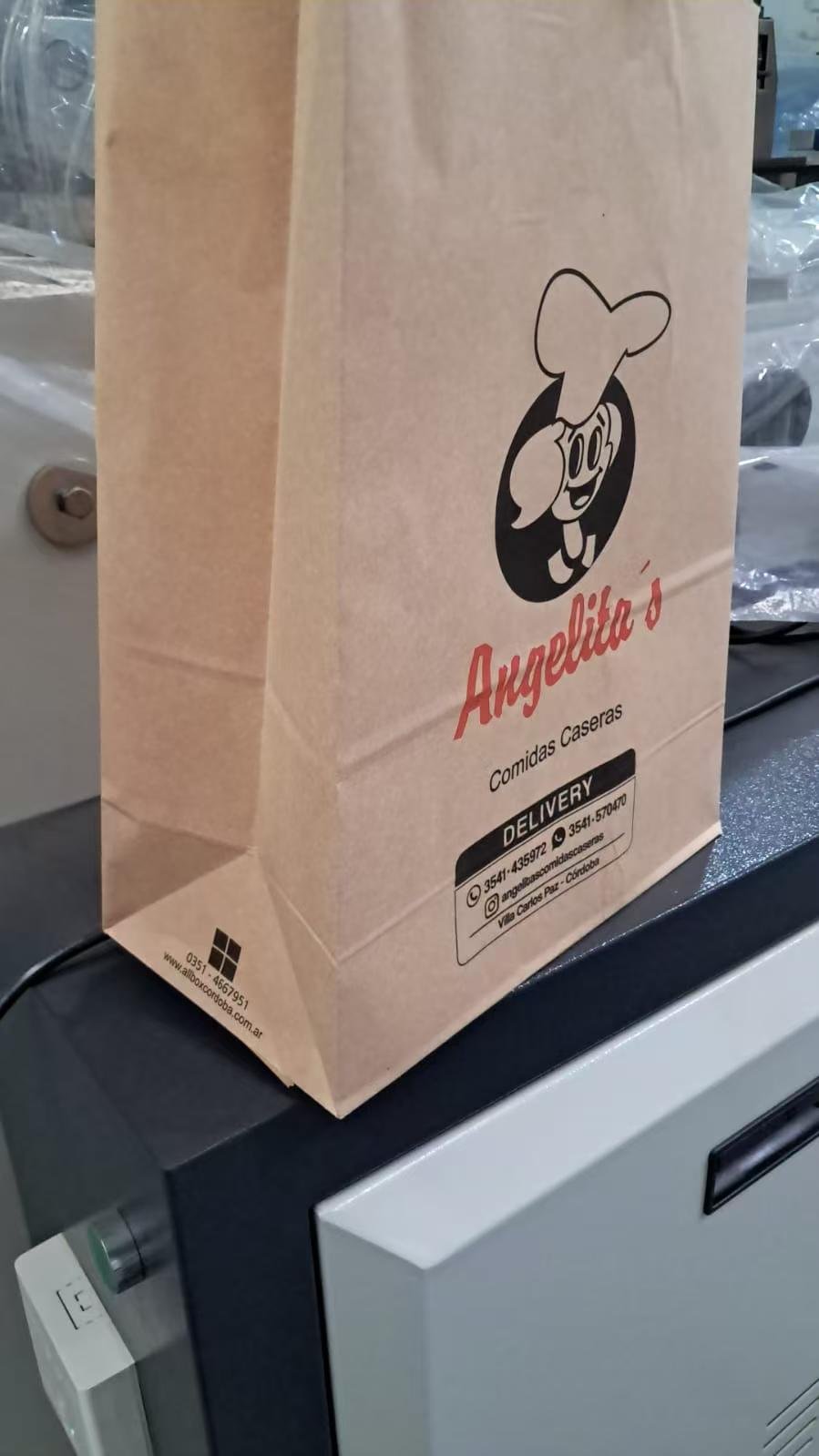

This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time.
The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.
This machine is composed of drum feeding (pneumatic feeding, automatic deviation correction, tension adjustment), side gluing,printing paper electric eye tracking,
base paper into cylinder, fixed-length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on.
The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.
Main Specifications
Model JD400 JD650 JD850 Bag Length (mm) 110 – 480 220 – 650 140 – 750 Bag width(mm) 70 – 260 80 – 350 70 – 450 Thickness(mm) 40-80g Machine Speed 40-650pcs/min 40-600pcs/min 60-400 pcs/min Paper roll width (mm) 200 – 740 220 – 960 220 – 1300 Side Gusset (mm) 20 – 100 20 – 120 20-190 Machine Power (kw) 6 8 10 Machine Dimension(mm) 4400*1700*1600 4800*2000*1600 6500*2500*2100 Machine Weight(kg) 2000 4300 5000 Voltage 380V 50HZ 3PHASE Specifications:
1) Auto Loading
2) Servo motor
3) Color Mark Sensor
4) High Speed
5) Multi-Language
