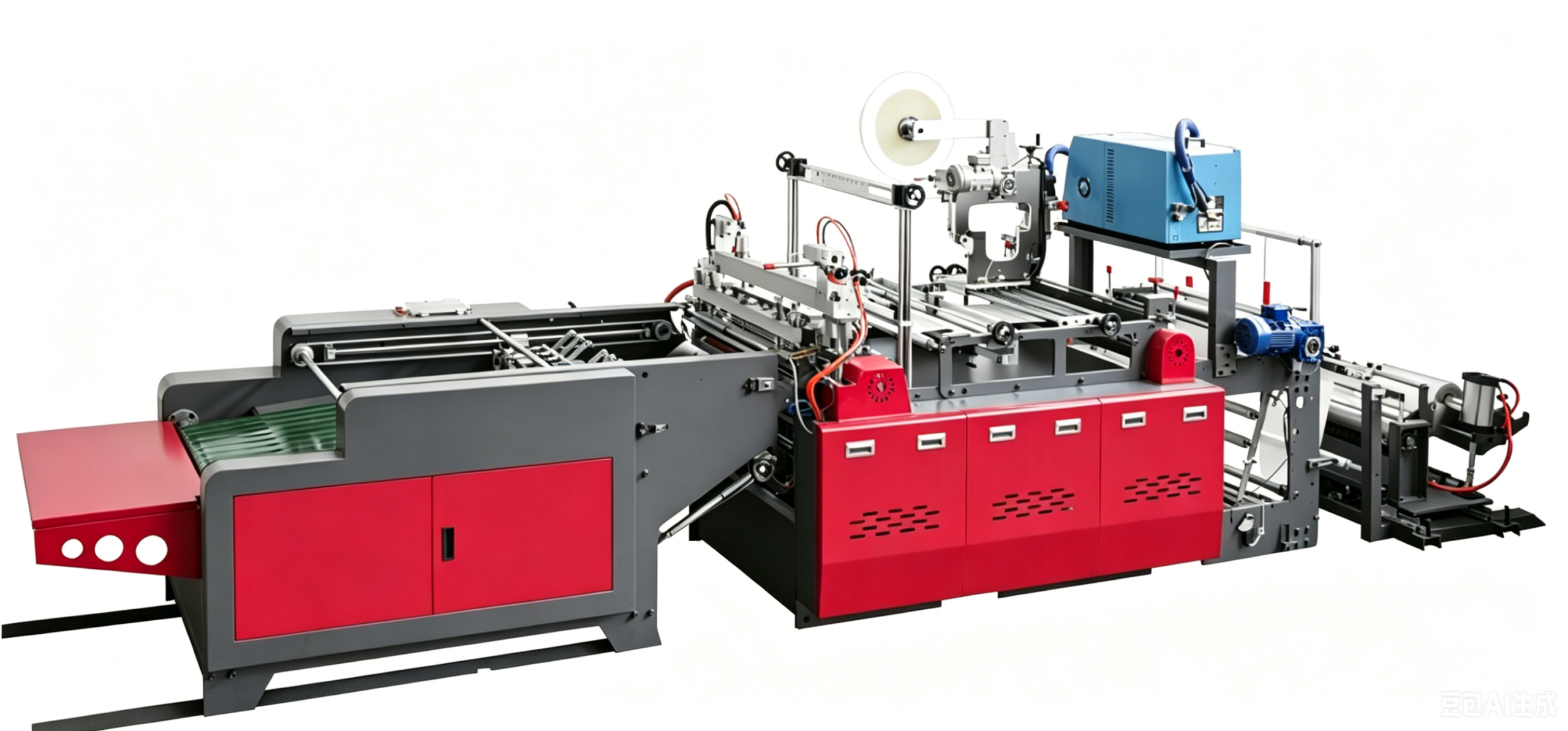

This machine is used for heat-sealing and edge-cutting bags from printed or non-printed polyethylene (PE) plastic film. The machine is equipped with automatic computer-controlled length setting, automatic color mark tracking, automatic glue cutting, automatic stop when release film runs out, automatic stop when film runs out, and automatic tension control (the machine has two patents). It is currently a particularly ideal and advanced courier bag production equipment.
Main Specifications
Model
KDJ800
KDJ1000
KDJ1300
Bag Length (mm)
400-700
500-900
500-1200
Bag width（mm）
300-600
300-700
400-700
Machine Speed
50-220pcs/min
50-220pcs/min
50-220pcs/min
Film Thickness(TUBE FILM)
LDPE: 0.05-0.15MM
LDPE: 0.05-0.15MM
LDPE: 0.05-0.15MM
Machine Dimension(mm)(for single layer film roll)
7100*2350*2250
7100*2350*2250
7100*2350*2250
Machine Dimension(mm)(for tube film roll)
6080*1200*1980
6100*1500*1980
6300*1800*1980
Total power
10kw
13kw
15kw
Machine Weight(kg)
1350
1750
2200
Voltage
3PHASE 380V,50/60HZ
3PHASE 380V,50/60HZ
3PHASE 380V,50/60HZ

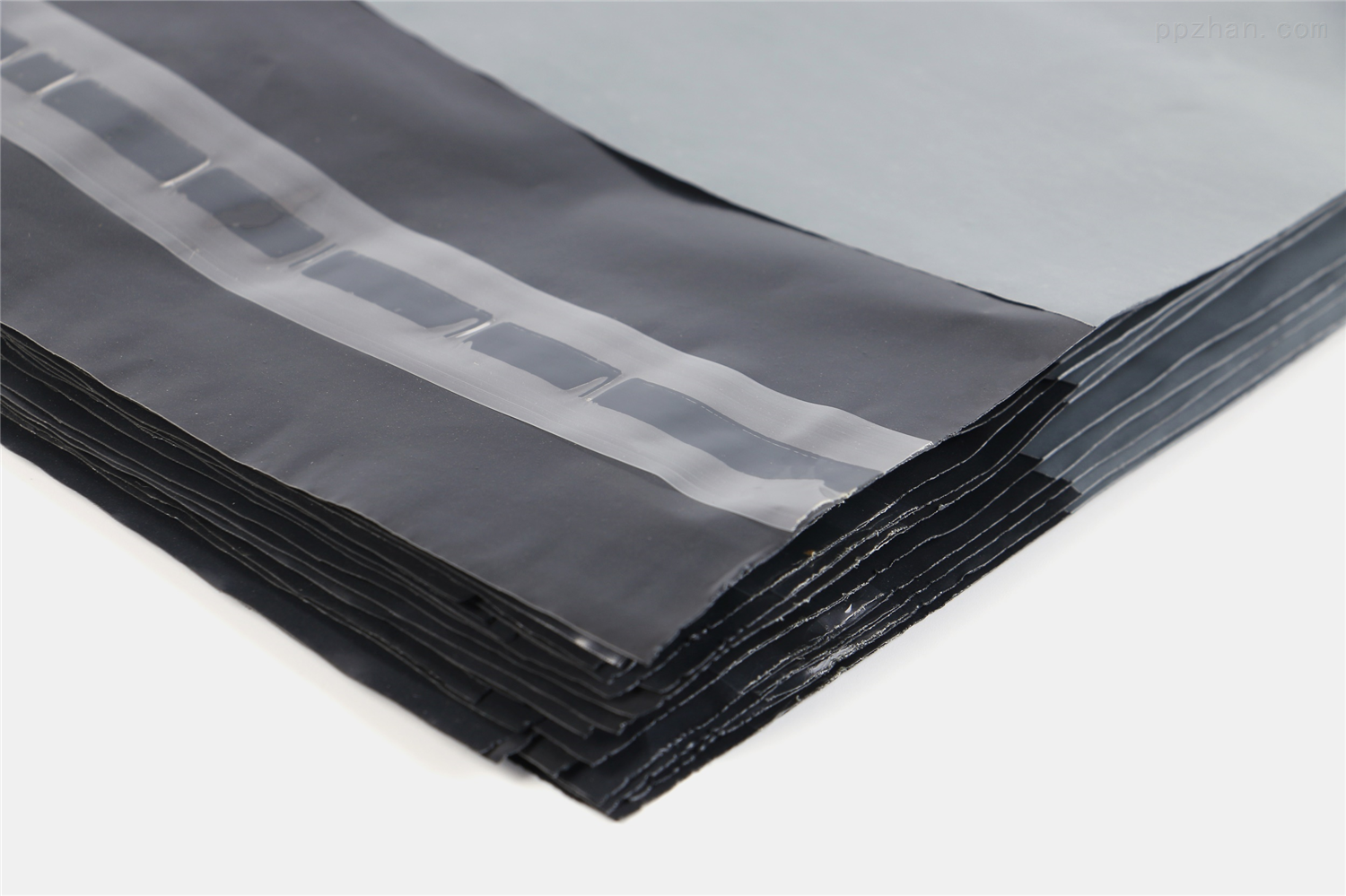

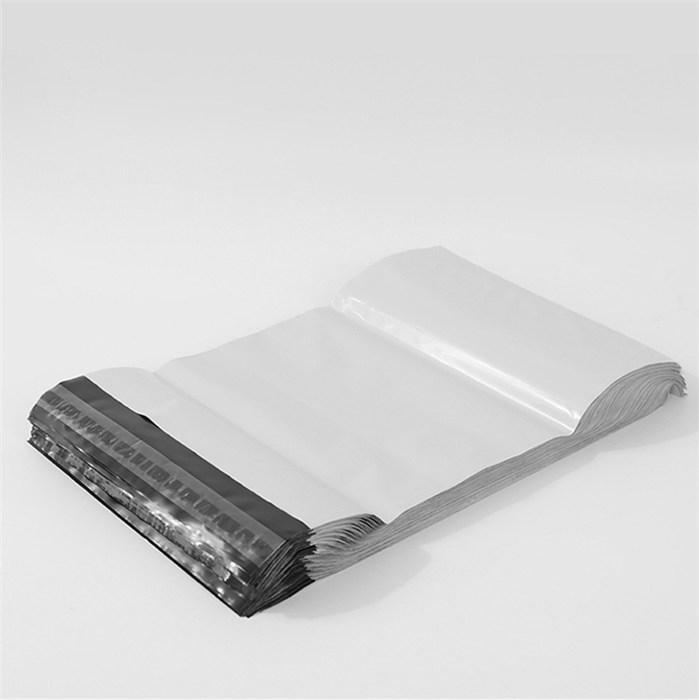

Bag Samples:
Semi-Automatic Courier Bag Making Machine
This machine applies PE film roll or single layer film roll to make courier bags with glue line for mail bags or packing bags.Full automatic working mode, steady running and easy operation.
