Name:Double Lines PE Courier Bag Making Machine (Pockets option)
This machine is used for heat-sealing and edge-cutting bags from printed or non-printed polyethylene (PE) plastic film. The machine is equipped with automatic computer-controlled length setting, automatic color mark tracking, automatic glue cutting, automatic stop when release film runs out, automatic stop when film runs out, and automatic tension control (the machine has two patents). It is currently a particularly ideal and advanced courier bag production equipment.
Main Specifications
Model
SDJ1200
SDJ1300
SDJ1400
Max. Bag Length (mm)
470
520
520
Max.Bag width（mm）
450
450
450
Machine Speed
20-320pcs/min
20-320pcs/min
20-320pcs/min
Film Thickness(TUBE FILM)
LDPE: 0.05-0.15MM
LDPE: 0.05-0.15MM
LDPE: 0.05-0.15MM
Machine Dimension(mm)(for single layer film roll)
9100*2350*2250
9100*2450*2250
9100*2550*2250
Machine Dimension(mm)(for tube film roll)
6450*1880*1980
6450*1980*1980
6450*2080*1980
Total power
13.5kw
14kw
16kw
Machine Weight(kg)
2500
2600
2800
Voltage
3PHASE 380V,50/60HZ
3PHASE 380V,50/60HZ
3PHASE 380V,50/60HZ

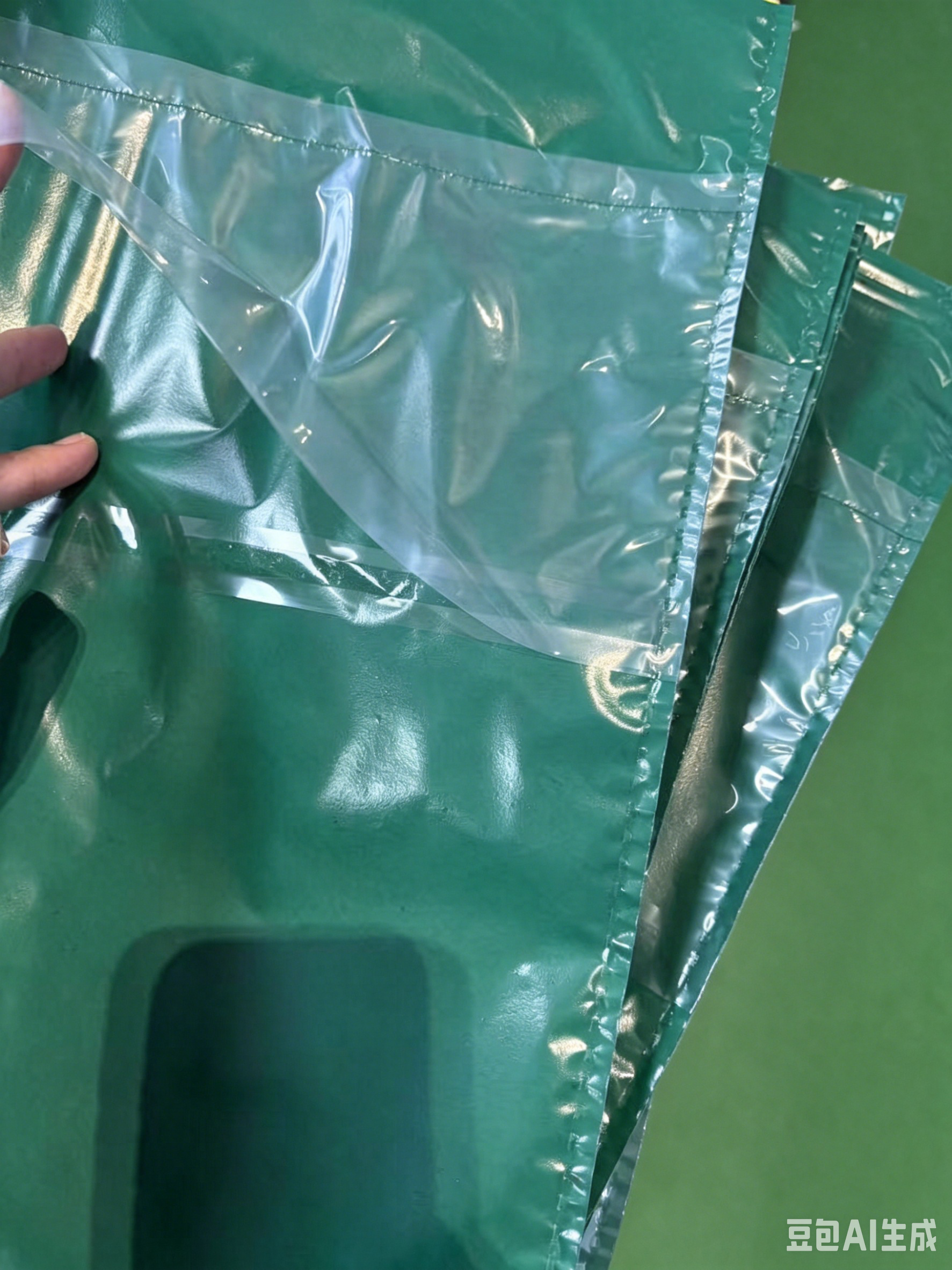

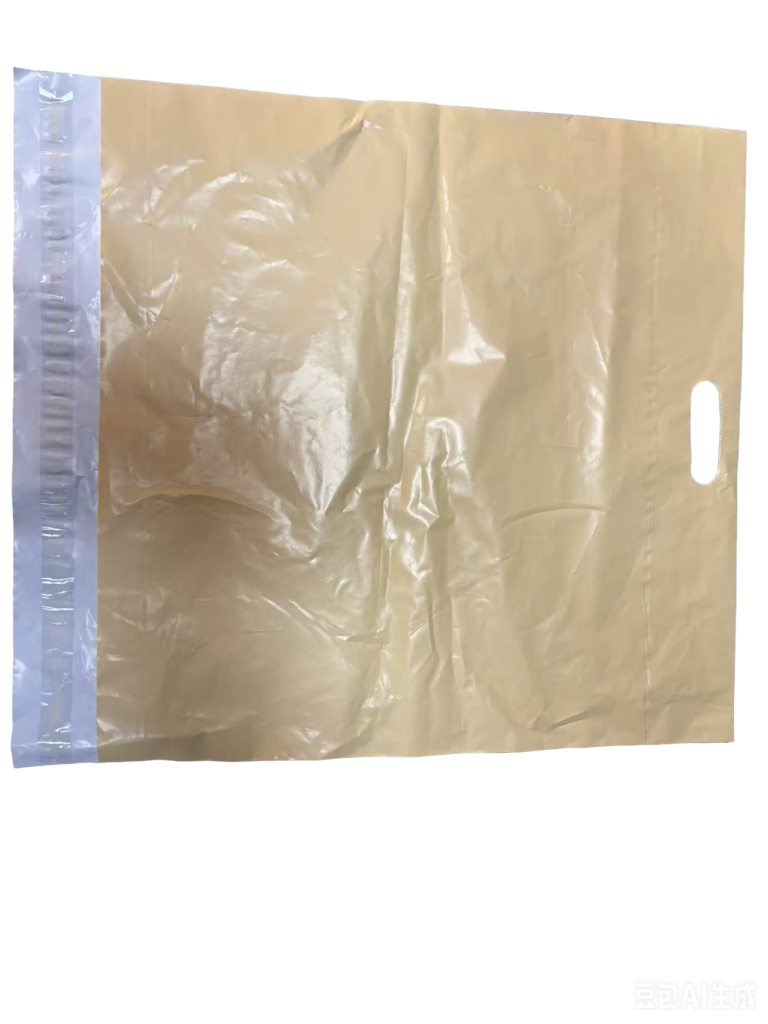

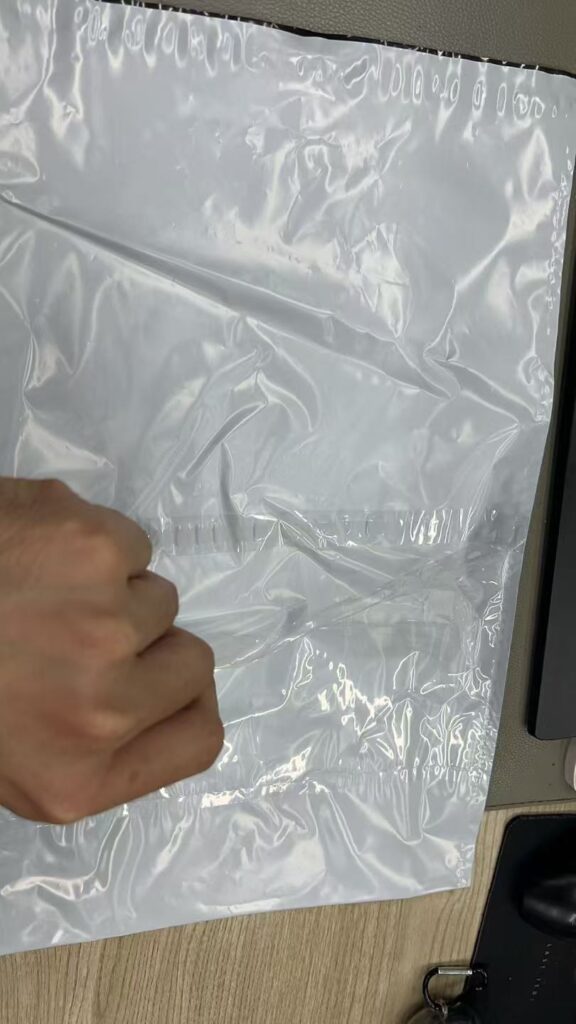

Bag Samples:

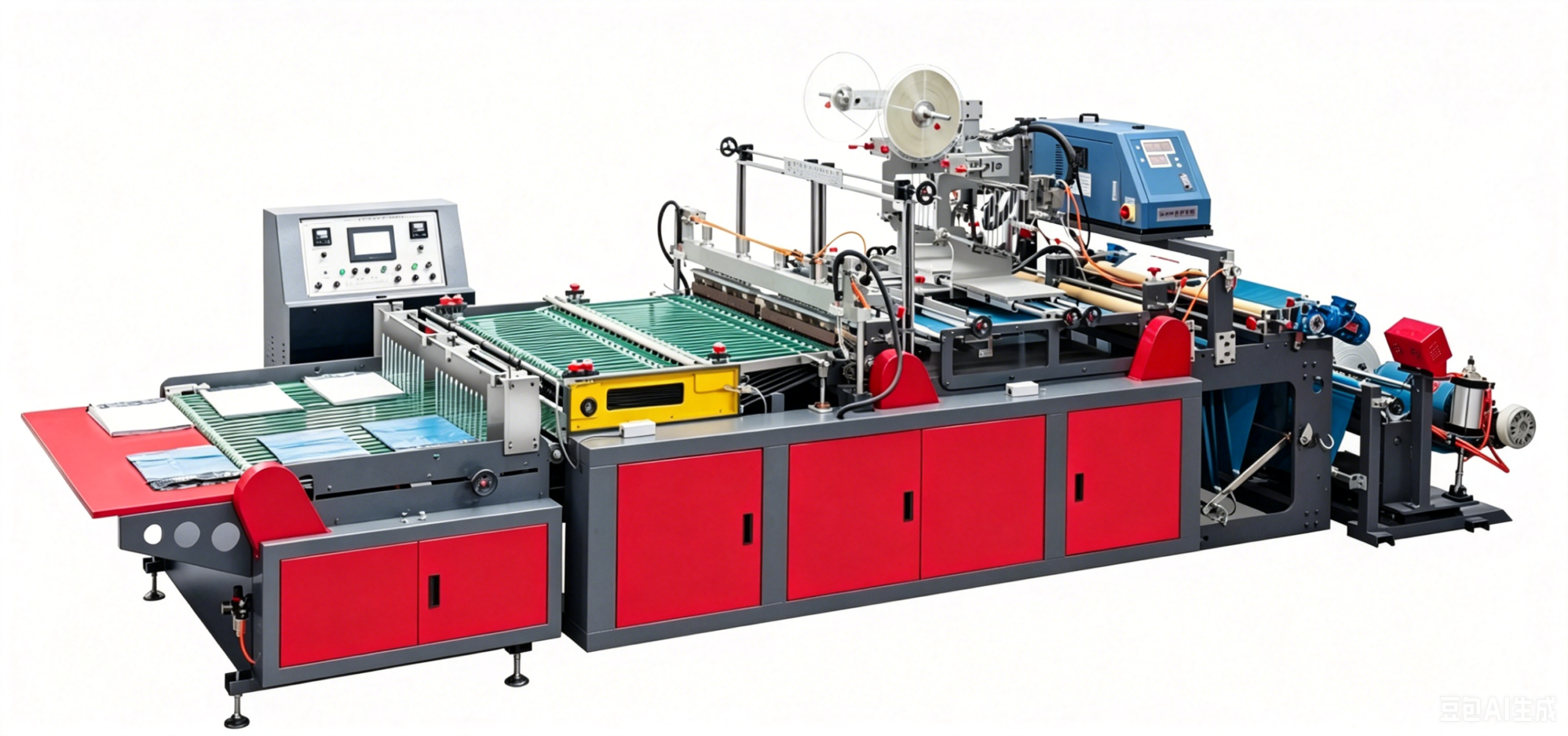

Double Lines Automatic Courier Bag Making Machine
This machine applies PE film roll or single layer film roll to make courier bags with glue line for mail bags or packing bags,2 bags at one time.Full automatic working mode, steady running and easy operation.
