Name: Full Automatic Drawstring Garbage Bag Making Machine

This machine is used for producing rolling drawstring bags,adapting double servo motors control feeding, high capacity,easy operation.No stretch of sealing which makes bags more stronge to load-bearing.Automatic roll changing system can save lots of cost on labor and improve working efficiency.

Main Specifications

Model TWCJ800 DFC1000
Bag Length (mm) 400-700 500-900
Bag width（mm） 300-1000 500-1000
Machine Speed 50+160pcs/min 50-160pcs/min
Film Thickness HDPE: 0.007-0.02MM / LDPE: 0.02-0.05MM HDPE: 0.007-0.02MM / LDPE: 0.02-0.05MM
Temperature control zone 5 zones 5zones
Machine Dimension(mm) 10000*2000*1900 10000*2200*1900
Total power 18kw 18kw
Machine Weight(kg) 2500 2800
Voltage 3PHASE 380V,50HZ 3PHASE 380V,50HZ

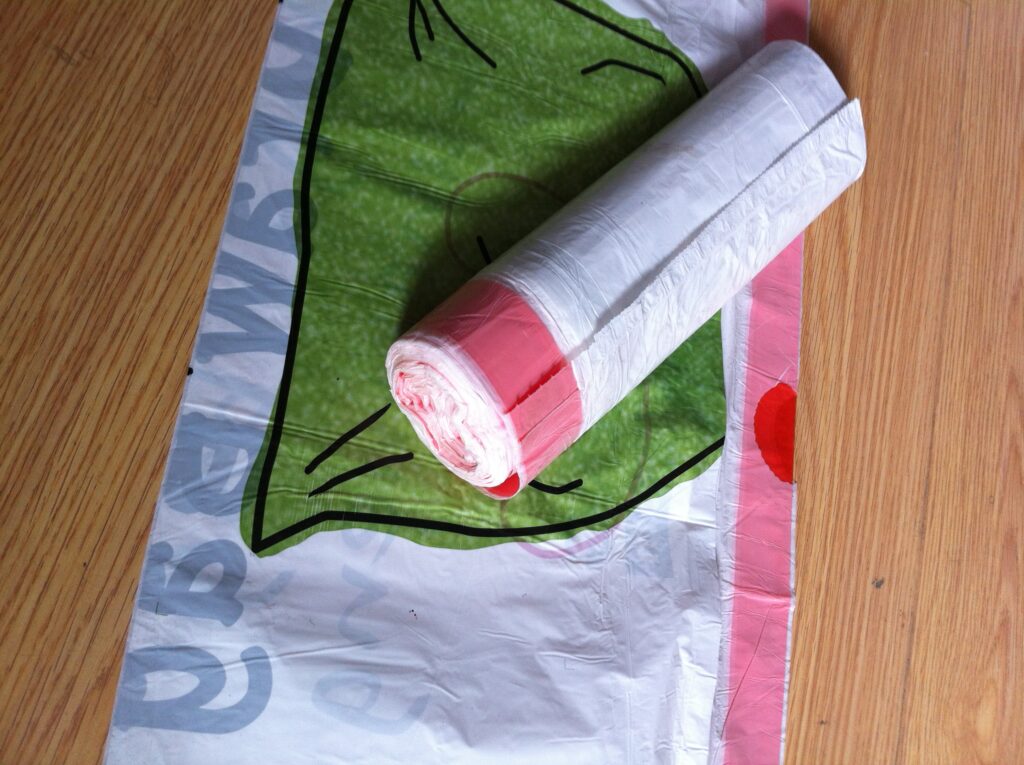

Bag Samples:

Back

Model	TWCJ800	DFC1000
Bag Length (mm)	400-700	500-900
Bag width（mm）	300-1000	500-1000
Machine Speed	50+160pcs/min	50-160pcs/min
Film Thickness	HDPE: 0.007-0.02MM / LDPE: 0.02-0.05MM	HDPE: 0.007-0.02MM / LDPE: 0.02-0.05MM
Temperature control zone	5 zones	5zones
Machine Dimension(mm)	1000020001900	1000022001900
Total power	18kw	18kw
Machine Weight(kg)	2500	2800
Voltage	3PHASE 380V,50HZ	3PHASE 380V,50HZ
